Agenda

1. Overview
2. Simple Methods
3. Parameters & Arguments
4. Return Values
5. Overloading
6. Conclusions

Overview

Overview

Concept

Methods are modular reusable blocks of code.

Overview

Concept

Methods are modular reusable blocks of code.

• The control flow of a program can easily switch to code within a method from anywhere else in the code.

Overview

Concept

Methods are modular reusable blocks of code.

• The control flow of a program can easily switch to code within a method from anywhere else in the code.

• Switching to code within a method is termed 'calling' or 'invoking' that method.

Overview

Concept

Methods are modular reusable blocks of code.

• The control flow of a program can easily switch to code within a method from anywhere else in the code.

• Switching to code within a method is termed 'calling' or 'invoking' that method.

• Calling a method is a form of unconditional branching - disrupting the 'usual' flow of a program.

Overview

Concept

Methods are modular reusable blocks of code.

• The control flow of a program can easily switch to code within a method from anywhere else in the code.

• Switching to code within a method is termed 'calling' or 'invoking' that method.

• Calling a method is a form of unconditional branching - disrupting the 'usual' flow of a program.

• Once the control flow reaches the end of an invoked method, the control flow returns to the line of code from which it originally branched.

Why methods?

Why methods?

• methods allow us to split a large program into manageable (read: small) sub-problems - "divide and conquer".

Why methods?

• methods allow us to split a large program into manageable (read: small) sub-problems - "divide and conquer".

• modular code is easier to read.

Why methods?

• methods allow us to split a large program into manageable (read: small) sub-problems - "divide and conquer".

• modular code is easier to read.

• modular code is re-usable code.

Why methods?

• methods allow us to split a large program into manageable (read: small) sub-problems - "divide and conquer".

• modular code is easier to read.

• modular code is re-usable code.

• modular code is easier to write and debug.

Method abstraction

Method abstraction

• A user (e.g. you) can use a method without knowing its implementation. The only thing the user needs to know is the methods signature (how to call it) and return type.

Method abstraction

• A user (e.g. you) can use a method without knowing its implementation. The only thing the user needs to know is the methods signature (how to call it) and return type.

• If the implementation changes "behind the scenes", the user does not need to modify their code that builds on the method (as long as the signature did not change).

Simple Methods

Simple Methods

Super simple

At their simplest, methods can have no parameters and no return value.

For example, a method named 'doSomething1':

public static void doSomething1() {
    System.out.println("Running  doSomething1");
    // imagine some useful stuff happens in the middle here
    System.out.println("Exiting  doSomething1");
}

Defining methods

Methods are comprised of a header and a body. Syntax:

modifiers returnType methodName(parameters) {
    [...] // stuff happens here
    return result;
}

The returnType can be any data type or void (i.e. the method does not return a value).

Simple Methods

Methods calling methods

Of course, methods can call other methods, as our doSomething1 already displayed - it called the System.out.println method several times.

Note the order in which the print statements are executed.

public static void doSomething1() {
    System.out.println("Begin doSomething1");
    // imagine some useful stuff happens in the middle here
    System.out.println("End doSomething1");
}
public static void doSomething2() {
    System.out.println("Begin doSommething2");
    doSomething1(); // call the method
    System.out.println("End doSomething2");
}

Simple Methods

Call stack

The order is determined by the control flow of the program.

Simple Methods

Call stack

The order is determined by the control flow of the program.

• Each method invocation creates a new 'stack frame' - an area of memory dedicated to the newly invoked method.

Simple Methods

Call stack

The order is determined by the control flow of the program.

• Each method invocation creates a new 'stack frame' - an area of memory dedicated to the newly invoked method.

• The Java interpreter is only ever looking at the method invocation at the top of the stack - the most recently invoked method.

Simple Methods

Call stack

The order is determined by the control flow of the program.

• Each method invocation creates a new 'stack frame' - an area of memory dedicated to the newly invoked method.

• The Java interpreter is only ever looking at the method invocation at the top of the stack - the most recently invoked method.

• Each stack frame has its own variable namespace, so you can have two variables named x in two different method invocations, and they will be different variables in two different areas of memory with potentially different values.

Simple Methods

Call stack

The order is determined by the control flow of the program.

• Each method invocation creates a new 'stack frame' - an area of memory dedicated to the newly invoked method.

• The Java interpreter is only ever looking at the method invocation at the top of the stack - the most recently invoked method.

• Each stack frame has its own variable namespace, so you can have two variables named x in two different method invocations, and they will be different variables in two different areas of memory with potentially different values.

• Once a method that has been invoked completes, its stack frame is popped (deleted) from the call stack and its memory is wiped clean.

Parameters

Parameters

Concept

Methods can accept 'arguments' - values sent into the method.

Parameters

Concept

Methods can accept 'arguments' - values sent into the method.

• These arguments are stored in 'parameters' - local variables within the namespace of the method invocation's stack frame.

Parameters

Concept

Methods can accept 'arguments' - values sent into the method.

• These arguments are stored in 'parameters' - local variables within the namespace of the method invocation's stack frame.

• Once the method invocation completes, any local variables, including parameters, are wiped out of memory.

Parameters

Concept

Methods can accept 'arguments' - values sent into the method.

• These arguments are stored in 'parameters' - local variables within the namespace of the method invocation's stack frame.

• Once the method invocation completes, any local variables, including parameters, are wiped out of memory.

public static void doSomething1(int x) {
    x++; // increment x
    System.out.println("Begin doSomething1, x=" + x);
    System.out.println("End doSomething1, x=" + x);
}

Arguments

Arguments are passed by value. Their value gets copied to variables that are specific to that method.

Arguments

Arguments are passed by value. Their value gets copied to variables that are specific to that method.

public static void addOne(int x) {
    x++; // increment x
}
public static void main(String[] args) {
    int i = 1;
    addOne(i);
    System.out.println("i is " + i); // i is 1
}

Arguments

Arguments

This naming can be confusing, since the value of an array variable is (essentially) its address in memory:

    public static void addOne(int[] array) {
        for (int i = 0; i < array.length; i++) {
            array[i]++;
        }
    }
    public static void printarray(int[] array) {
        for (int i = 0; i < array.length; i++) {
            System.out.print(array[i]);
        }
        System.out.print("\n");
    }
    public static void main(String[] args) {
        int[] array = {1,2,3};
        printarray(array);   // prints 123
        addOne(array);
        printarray(array);  // prints 234
    }

We will discuss this further in the coming weeks.

Return values

Return values

Concept

Methods can return a single value in Java.

Return values

Concept

Methods can return a single value in Java.

• The method signature line must state the data type of the returned value

Return values

Concept

Methods can return a single value in Java.

• The method signature line must state the data type of the returned value

• This value is returned to the part of the code from which the method was originally invoked.

Return values

Concept

Methods can return a single value in Java.

• The method signature line must state the data type of the returned value

• This value is returned to the part of the code from which the method was originally invoked.

• Think of it as if the method invocation is replaced by that method's return value.

Return values

Concept

Methods can return a single value in Java.

• The method signature line must state the data type of the returned value

• This value is returned to the part of the code from which the method was originally invoked.

• Think of it as if the method invocation is replaced by that method's return value.

public static int doSomething1(int x) {
    x++; // increment x
    System.out.println("Begin doSomething1, x=" + x);
    System.out.println("End doSomething1, x=" + x);
    return x;
}

Overloading

Overloading

Concept

Java allows multiple methods with the same name but different parameter sets. These are called overloaded methods.

Overloading

Concept

Java allows multiple methods with the same name but different parameter sets. These are called overloaded methods.

• Which version of the method is invoked depends upon the arguments in the method call.

Overloading

Concept

Java allows multiple methods with the same name but different parameter sets. These are called overloaded methods.

• Which version of the method is invoked depends upon the arguments in the method call.

public static void foo() {
    ...
}
public static void foo(String bar) {
    ...
}
public static void foo(String bar, boolean baz) {
    ...
}

Documentation

Documentation

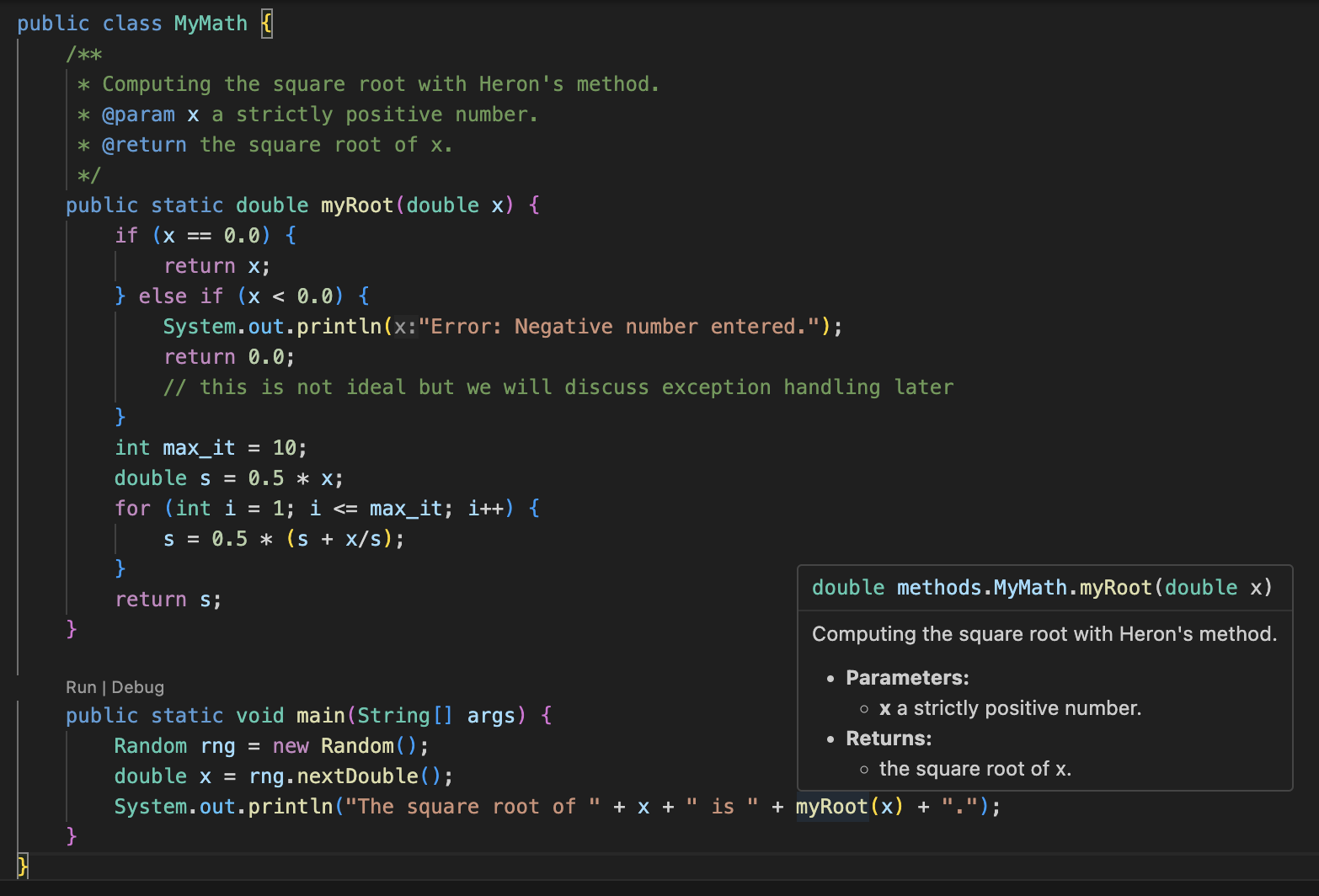

Javadoc allows us to write documentation so users understand what our methods do. Take the following example:

/**
 * Computing the square root with Heron's method.
 * @param x a strictly positive number.
 * @return the square root of x.
 */
public double myRoot(double x) {
    if (x == 0.0) {
        return x;
    } else if (x < 0.0) {
        System.out.println("Error: Negative number entered.");
        return 0.0;
        // this is not ideal but we will discuss exception handling later
    }
    int max_it = 10;
    double s = 0.5 * x;
    for (int i = 1; i <= max_it; i++) {
        s = 0.5 * (s + x/s);
    }
    return s;
}

Conclusions

Conclusions

You now have a basic understanding of methods in Java.

Conclusions

You now have a basic understanding of methods in Java.
